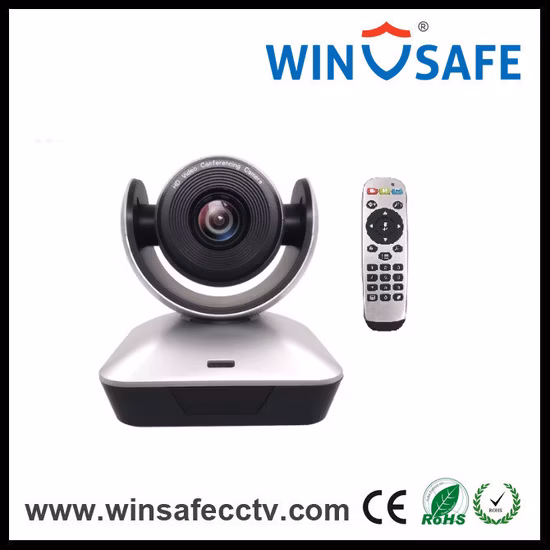

1080P HD Definition Video Conference Camera and Speaker Conference System Solution

Basic Info

Model NO.	SQ-210A
Transport Package	Foam +Plastic Bag +Carton
Specification	SQ-HK100S-12X
Trademark	HS
Origin	China
HS Code	8525891900
Production Capacity	100000

Product Description

The application scope of video conference system is very wide, can be used in network video conference, office, online training, telemedicine, distance education and other aspects, can be widely used in the government, military, enterprise, IT, telecommunications, electricity, education, medical, securities, finance. manufacturing . in general speaking1. Multifunctional audio interaction
advanced video compression algorithm, perfect HD picture quality, multi-audio and video interaction, multi-screen output screen display, gimhead remote control function .2.electronic whiteboard
3.Dynamic PPT The perfect verb holds the dynamic PPT presentation, restores the high definition, the high fidelity dynamic drawing present and the audio, the video effect.4.File sharing Common document sharing and browser-based file sharing. Common documents can be shared on the whiteboard for all participants to view. Multiple participants can annotate and sketch documents at the same time.5. Co-browsing,media player or Desktop sharing and conference management etc.
Detailed PhotosProduct Parameters

Technical Specifications :

Parameter /Model	SQ510A-05	SQ510A -10	SQ510A-12	SQ510A-20	SQ510A-30
Camera and lens parameters
Imagig sensor	1/2.8 Inch high qulity CMOS sensor
Effective Pixels	2.07 million ,16:9
Video signal	HDMI/ SDI / HD BaseT interface video format
	1080P60/50/30/25/ 59.94/29.97; 108060/ 50/59.94; 720P60/50/30/25/ 59.94/29.97
	USB3.0 interface video format
	1) USB3.0: 1920×1080P60/50/30/25; 1280×720P60/50/30/25; 960×540P30; 640× 360P30; 640×480P30; 352×288P30; 800×600P30

	2) USB3.0 compatibility USB2.0: 960×540P30; 640×360P 30; 1280×720P10/15; 720×576P50; 720×480P60; 640×480P30; 352×288P 30; 800×600P30;
	USB2.0 interface video format
	176×144/320×240/ 320×180/ 352×288/ 640×480/ 720×480/720×576/ 640×360/800×600/960×540/ 1024×576/1024×768/1280×720/ 1920×1080P30/25/20/15/10/5
Lens optical doubling	5X optical zoom	10X optical zoom	12X optical zoom	20X optical zoom	30X optical zoom
	f=3.1~15.5mm	f =4.7~47mm	f=3.9~46.8mm	f=5.5~110mm	f=4.3~129mm
Angle of View	20°~ 83.7°	6.43°~ 60.9°	6.3°~ 72.5°	3.3°~ 54.7°	2.34°~ 65.1°
Aperture coefficient	F1.8~F2.8	F1.6~F3.0	F1.8~F2.4	F1.6~F3.5	F1.6~F4.7
Digital noise	10 times

Certifications

Packaging & ShippingInstallation InstructionsCompany ProfileOur Advantages

1.Higher interaction , the telephone conference creates a lack of direct contact between the participants.
2.Reduce commuting time ,in case of service failure , customers can also communicate and deal with it in the first time to give better sense of experience.
3.Cost saving By using video conferencing you can cut down on that cost and save your employees time on the round-trip
4. Improve communication empolyees can better understand the topic of the meeting
5.Improve team cohesion , important is improving the cohesion of enterprise members becomes a top priority.
6.Improve work efficiency ,if find a problem you can discuss it together and solve it at the first time. also control it remotely and ask your colleagues
to help you find the problem
7.we are manufcturer that can guarantee quality and reduce cost .
