PTZ Camera IP Keyboard Controller for Video Conferencing Camera in Livestreaming

Basic Info

Model NO.	AVL-E2
Certificate	CE, RoHS
Sensor	1/2.8′′, CMOS, Effective Pixel: 2.07m
OEM & ODM	Support
Input/Output Interface	HDMI; SDI; RJ45; RS232; RS485
Size	146mm X 152mm X 165mm
Net Weight	1.35kg
Input Voltage	DC 12V
Video S/N	55dB
Scanning Mode	Progressive
Video Format	1080P/60, 1080P/50, 1080I/60, 1080I/50, 1080P/30
Lead Time	3~5 Days
Color Option	Black
Ndi	Yes
Poe	Yes
Transport Package	Carton
Specification	30x optical
Trademark	AVLink
Origin	China
HS Code	8525801390
Production Capacity	50000/Year

Product Description

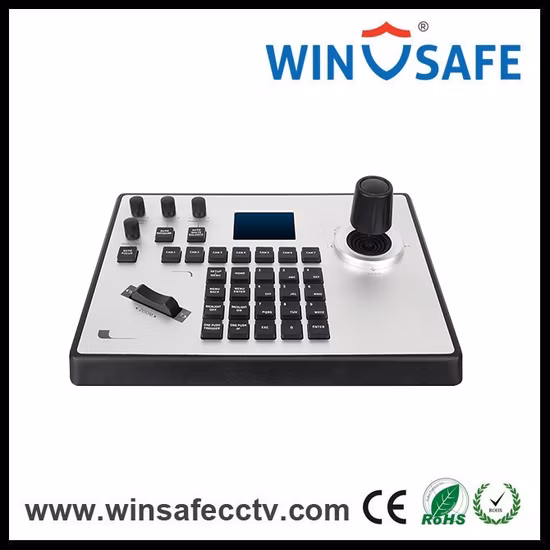

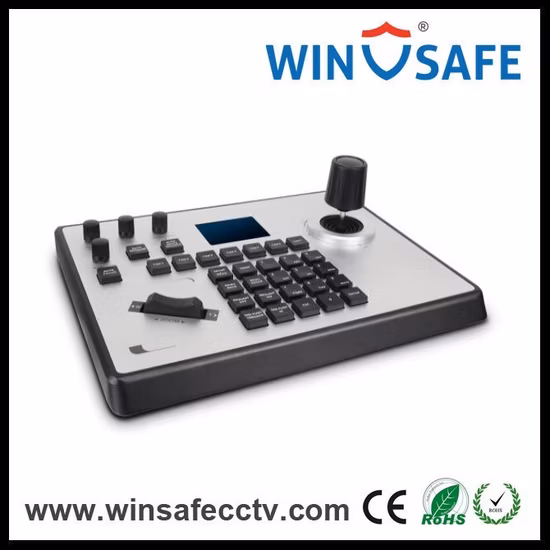

3D Joystick Keyboard Controller with RS485 for Video Conferencing Cameras

Features

• Support Pelco-D, Pelco-P, Sony VISCA, Cisco, Polycom, Canon, AW etc.
• Support up to 64 channels, each channels can be setting special protocol and baud rate , muti-brand camera can work in one controller.
• Under Visca, Cisco, Polycom protocol, presets can be save on the keyboard, 8 presets per channel.
• Under Visca, Cisco protocol, Controller can automatically assigns address.
• Use high quality joystick, nimble, feel good, and high accuracy.
• 10 levels backlight can be set

New Arrival PTZ Keyboard Controller KC50 Specification:

Support Protocol	Pelco-D, Pelco-P(Pelco), Visca(Sony), Polycom(Polycom), Cisco(Cisco), Canon(Canon), AW(Panasonic)
Baudrate	1200, 2400, 4800, 9600, 19200
Joystick	3D+1key, Light encode, ±80 level.
LCD Screen	ASCII display, blue backlight, 20 chars, 2 lines.
Button	28Keys, Double color backlight, 10 level light.
Control System Capacity	64
P/T/Z Control	Support
Iris Control	Support
Preset Numbers	255
Camera Shortcut	Support
Camera Remote Menu	Support
Remote Power Switch	Support
Connectors	1 x RS232, max distance: 30m
	1 x RS485, max distance: 1200m
	1 x RJ45 (RS485/RS232), Reserved
	1 x USB
Input Voltage	DC 12V
Current Consumption	0.5A(Max)
Operating Temperature	0°C ~ 40°C
Storage Temperature	'-20°C ~ 60°C
Power Consumption	2.7W
Dimensions (LxWxH)	354mm × 164mm × 115mm
Weight	1.25Kg



About AVLink Video Conference Solution

Shenzhen AVLink technology co., ltd, based on Guangming, Shenzhen, China. Leader of Chinese Conference System.

Shenzhen AVLink is a professional AV integration and conference solution supplier, specialized in high-definition video PTZ camera and PTZ keyboard controller over 10 years. Our production series from indoor camera such as High-Definition video conferencing PTZ camera, MCU, All-in-one camera terminal, HDBaseT, tracking camera 4K camera to Outdoor camera. range from 5x, 10x, 20x, to 30x optical. We offer interactive whiteboard from 32inch, 43inch, 49inch, 55inch, 65inch, 75inch, and 86inch, even up to 98inch and 100inch.

Which Certificate AVLink Has?

Each product meets CE Certificate: CE (EN62368-1:2014+A11:2017) (EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN61000-3-3:2013), and RoHs(2011/65/EU; 2015/863/EU), ROHS(IEC62321-1), IP65(EN60529)

Which Kind of Service You Will Get?

• Provide free marketing material to distributor
• Get the affordable price of hot item PTZoptics camera
• Enjoy 7/24 after-sales service

Ask Us Anything(FAQ)

1
Q: Are you Manufacturer or Trading company?
A: Manufacturer with more than 10 years experience.2.
Q: What's your main products?
A: We have been focusing on the production of Video conference camera and interactive whiteboard for 10 years.3
Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.4.
Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime.5.
Q: What is your delivery time?
A: For samples, 1~3 days delivery for indoor dynamic screen, 15~20 dayS for outdoor digital signageFor bulk order, it depends on your quantity and requirements on OEM / ODM.6. Can I be your distributor? For distributor issue, please confirm with our director. Send inquiry now!
